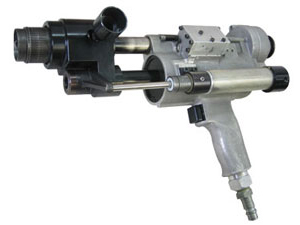

Precision Drilling l M2000

Precision Drilling l M2000

Standard Features
• Ergonomic design
• Consistent clamp force–min to max collet spacing
• Choice of template foot, concentric collet, Keller foot or taper lock
• 10 spindle speed selection
• Fully adjustable feed rate
• Positive mechanical depth stop
• Spindle rotation during retract
• Locking trigger for unattended operation
• Precision spindle bearings
Optional Features
• Air pressure intensifier for increased thrust and clamp force
• Drill point and thru spindle coolant systems
• Spindles compatible to various cutter designs
• Variable clamp force control unit

Drill Stroke
Spindle Speeds
Drill/ C’Sink Size
Drill Thrust/ Clamp Force
Motor Power
Air Consumption
Depth Accuracy
Collet Stroke
Weight
2.08 in.
450
.500 / .750 in.
270 lbs. / 700 lbs.
2.5 HP
60 CFM at 90 PSI
+0.000 -0.001 in
.780 in.
16.5 lbs.
53 mm
800
12.7 / 19 mm
95 kg / 245 kg.
1.86 kw
(3/8” I.D. Hose)
+0.00 - 0.25 mm
19.8 mm
3.8 kg.
-
1250
-
-
-
1.70 m3 / min at 620 kPa
-
-
-
-
1600
-
-
-
-
-
-
-
-
2000
-
-
-
-
-
-
-
-
3500
-
-
-
-
-
-
-
-
4500
-
-
-
-
-
-
-
-
6000
-
-
-
-
-
-
-
-
9000
-
-
-
-
-
-
-
